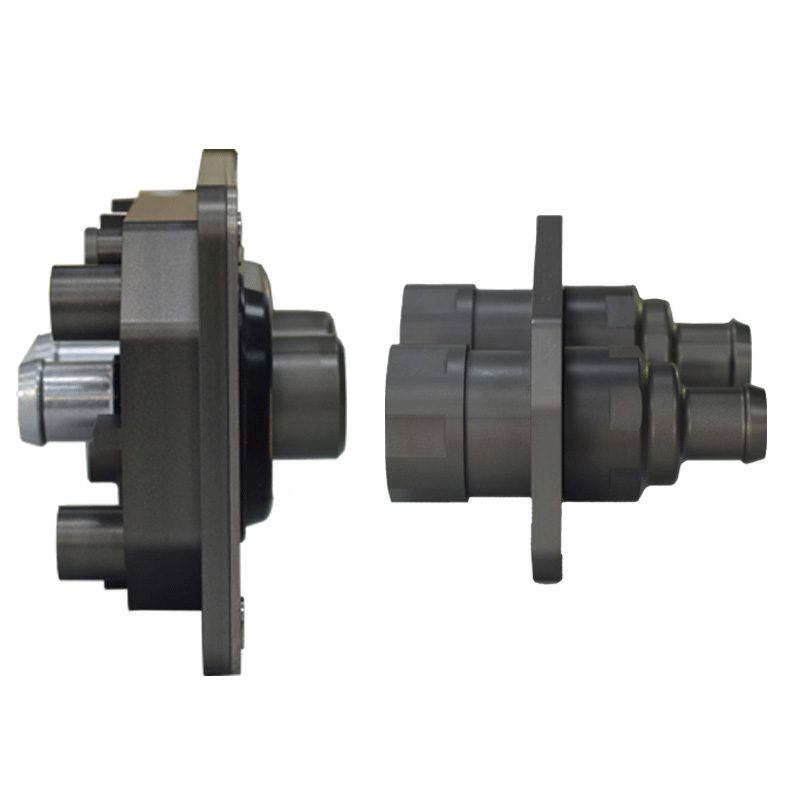

Liquid cooled Quick change connector – body end/battery end Suitable for car body side, battery side, power changing station, mobile trolley and other applications.
Main technical indicators
| Maximum channel volume flow | ≥ 50 L/min |
| Fluid type | 1:1 mixture of water and ethylene glycol |
| Working pres sure | 0.5~1.0 Bar (recommended) |
| Voltage drop | ≤ 0.25Bar (dual channel, Set flow rate of 50L/min) |
| XYZ flow | X. Y: ≥ ± 8mm (without tilt angle)
Z：≥ ±5mm |
Mechanical performance
| Minimum Mating Cycles | 10000 times |
| Combing strength (The spool is fully open) | Electricity ≤ 400N |
Environment performance
| IP Degree | IP68 |
| Operation Temperature | -40℃~125℃ |
| Salt Spray Resistance | 720H (mating state） |
Reference standard
| GB/T 5860 |
| GB/T 8606 |
| GB 4208 |
| GB/T 38031 |
| GB/ 7258 |
| GB/T 30512 |
| GB/T 18384.2 |
