Application

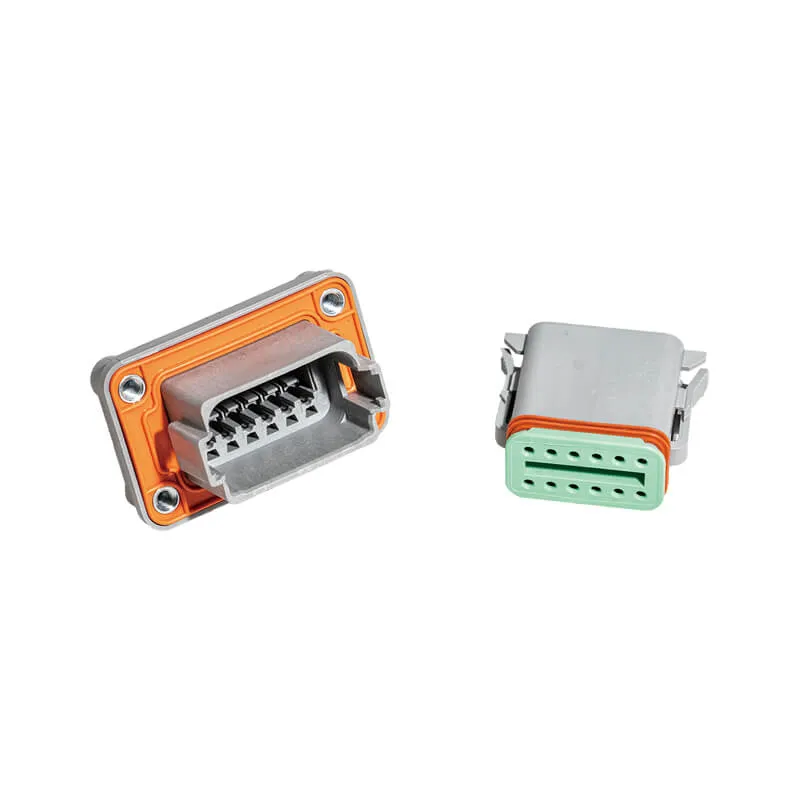

The product is vehicle connector, which is used for the connection low voltage.
Electrical performance
| Rated Current | 7.5~13A |
| Rated Voitage | 250V AC/DC |
| Insulation Resistance | 1000MΩ MIN (@25℃ 40%~60%RH） |
| Test Voitage | 1500V AC（1min） |
Mechanical performance
| Minimum Mating Cycles | 50 times |
| Wire Range | Power：14~20AVG Signal：20AWG |
Environment performance
| IP Degree | IP68 |
| Operation Temperature | -25℃~105℃ |
| Salt Spray Resistance | 48H(In mating state) |
Reference standard
| USCAR-2 |
