Application

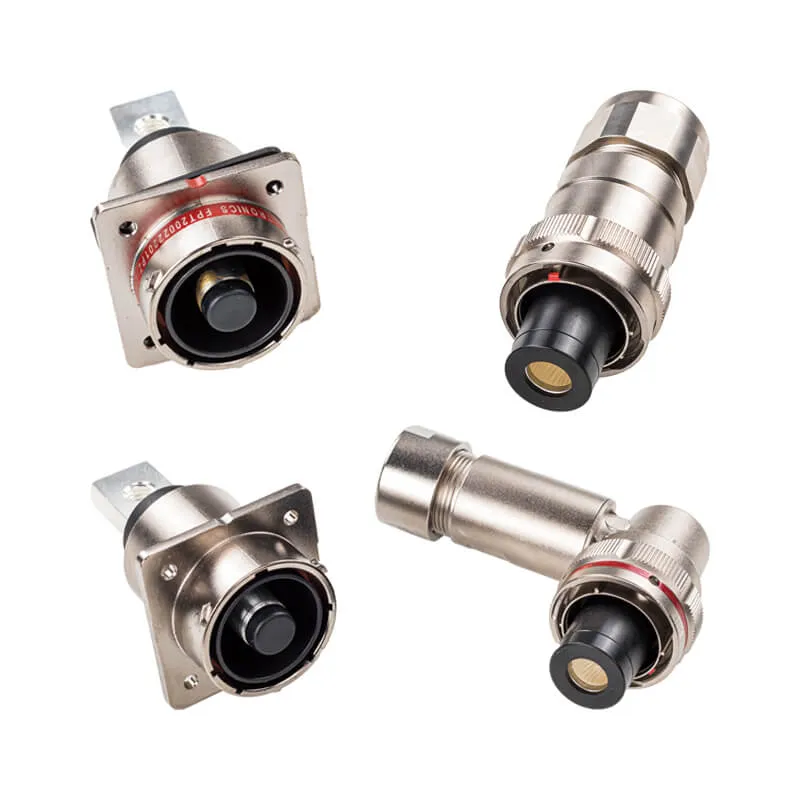

The connector with metal shell that widely used in electrical vehicle field for high voltage current transmission between devices such as vehicle charger, battery pack, high-voltage distribution box, motor controller, motor, air conditioner, PTC, battery, etc.
Electrical performance
| Rated Current | 450A |
| Rated Voitage | 1000V |
| Insulation Resistance | 5000MΩ(@25℃ 40%-60%RH) |
| Test Voitage | 3000VDC |
Mechanical performance
| Minimum Mating Cycles | 500cycles |
| Wire Range | 70mm²~120mm² |
Environment performance
| IP Degree | IP68(mated) |
| Operation Temperature | -40℃~125℃ |
| Salt Spray Resistance | 48H |
Reference standard
| USCAR-2 |
| USCAR-37 |
| RoHS |
| MIL-C-26482 |
