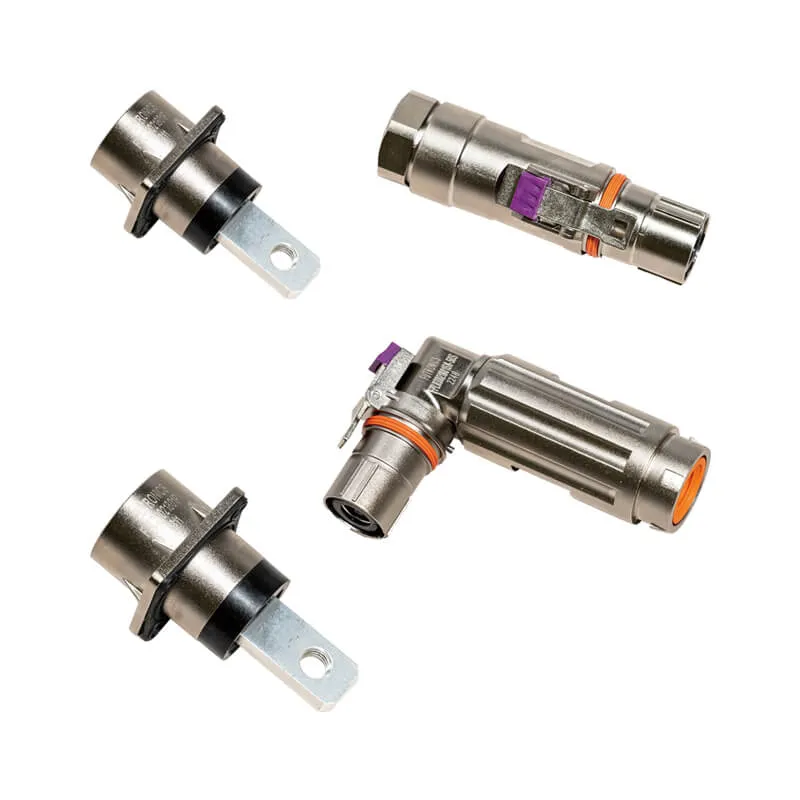

FPL300 High Current Connector

FPL300 High Current Connector

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Reservation Now
Detail

Application

This connector with a metal shell , that was widely used in electrical vehicle field for high voltage current transmission between devices such as vehicle charger, battery pack, high-voltage distribution box, motor controller, motor, air conditioner, PTC, battery, etc.

Electrical performance

Rated Current250A MAX
Rated Voitage1000V
Insulation Resistance5000MΩ(@25℃ 40%-60%RH)
Test Voitage3000VDC

Mechanical performance

Minimum Mating Cycles500cycles
Wire Range35mm²~70mm²

Environment performance

IP DegreeIP68(mated)
Operation Temperature-40℃~125℃
Salt Spray Resistance48H

Reference standard

USCAR-2
USCAR-37
RoHS
LV215
