Application

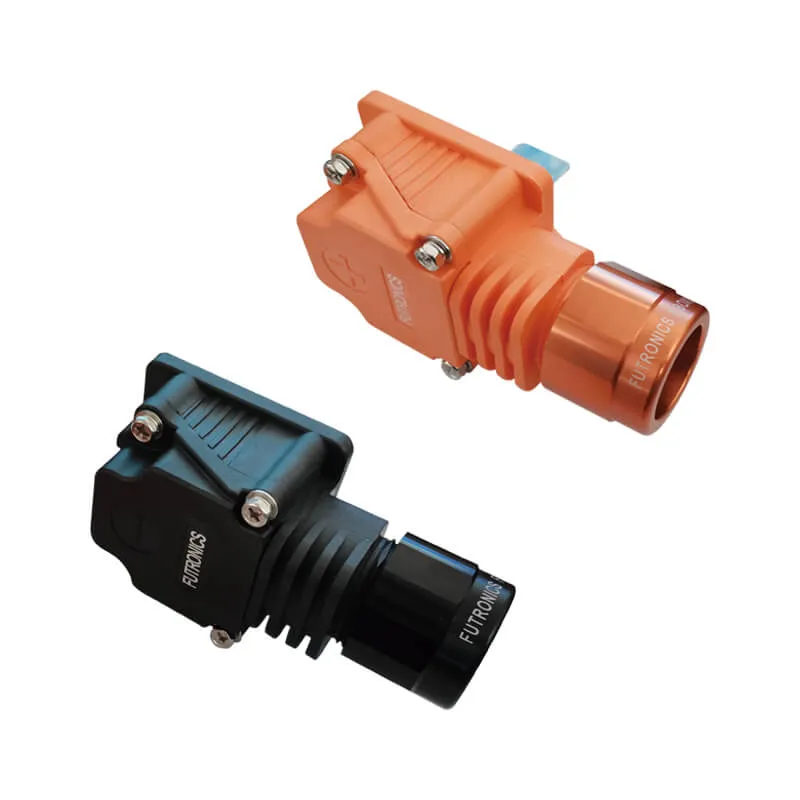

Apply to the line-to-line connection , such as high voltage, current transmission of electric vehicle battery box and PDU.
Electrical performance
| Rated Current | 300A MAX |
| Rated Voitage | 1000V |
| Insulation Resistance | 5000MΩ(@25℃ 40%-60%RH) |
| Test Voitage | 3000VDC |
Mechanical performance
| Minimum Mating Cycles | 500 cycles |
| Wire Range | 50mm²~70mm² |
Environment performance
| IP Degree | IP68(mated) |
| Operation Temperature | -40℃~120℃ |
| Salt Spray Resistance | 48H |
Reference standard
| USCAR-2 |
| USCAR-37 |
| RoHS |
| LV215 |
