Application

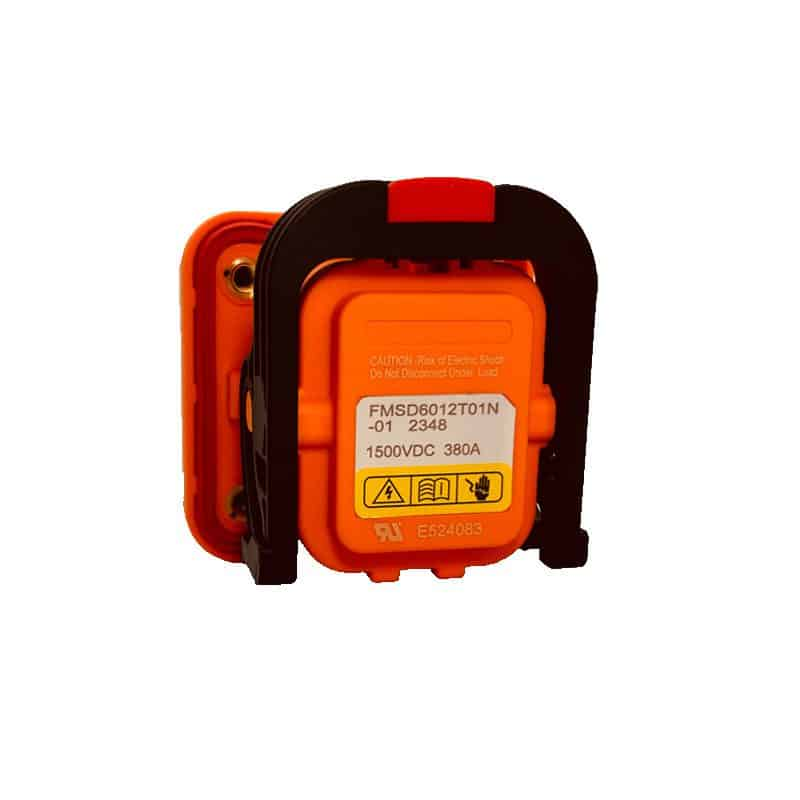

The product is a MSD, usually installed in the battery pack or controller of the positive input terminal, maintenance needs to be disconnected to reduce the risk of operation.
Electrical performance
| Rated Current | 380A |
| Rated Voitage | 1500V DC |
| Insulation Resistance | 5000MΩ MIN( Drying) 200MΩ MIN(RH 95%) |
| Test Voitage | 4000VAC |
Mechanical performance
| Minimum Mating Cycles | 500 times |
| Wire Range |
Environment performance
| IP Degree | IP67 mated |
| Operation Temperature | -40℃~+125℃ |
| Salt Spray Resistance | 144H (mating state） |
Reference standard
| QCT1067 |
| UL4128 |
| UL1977 |
