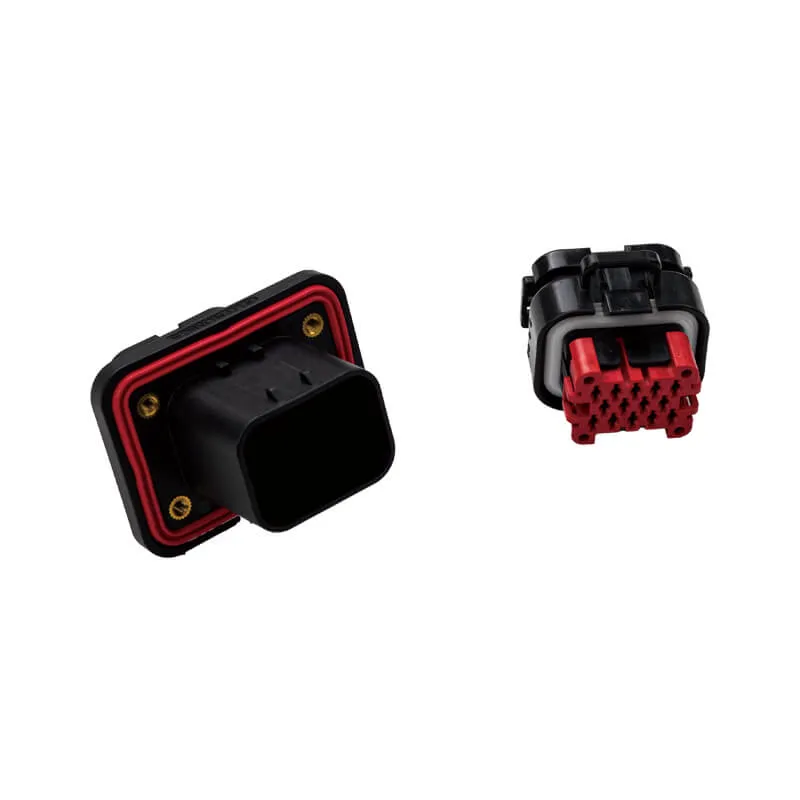

The product is the vehicle plastic signal connector, the product is used for the signal transmission between the vehicle charger, battery pack, high voltage distribution box, motor controller, motor, air conditioner, PTC, battery and other components.
Electrical performance
| Rated Current | 8A MAX |
| Rated Voitage | DC500V |
| Insulation Resistance | 5000MΩ MIN( Drying) 200MΩ MIN(RH 95%) |
| Test Voitage | 2000V AC |
Mechanical performance
| Minimum Mating Cycles | 500 |
| Wire Range | 0.5mm²~1.5mm² |
Environment performance
| IP Degree | IP67 |
| Operation Temperature | -40℃~125℃ |
| Salt Spray Resistance | 144H(mating state） |
Reference standard
| USCAR-2 |
| USCAR-37 |
