Application

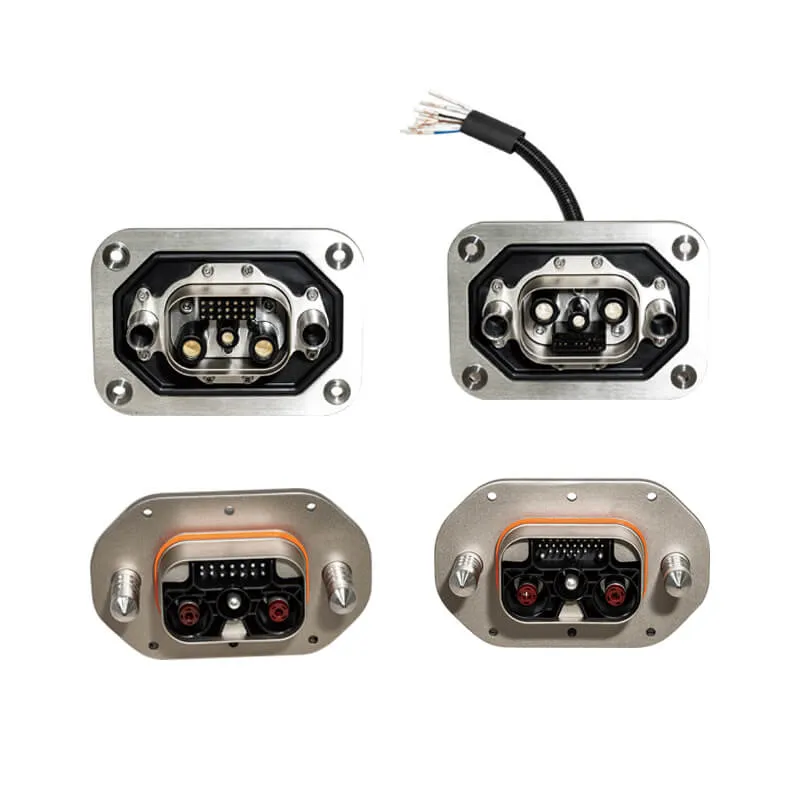

It is mainly used for electric vehicle swapping battery quickly with the power station.
Electrical performance
| Rated Current | 150A~400A |
| Rated Voitage | 1500V |
| Insulation Resistance | 5000MΩ(@25℃ 40%-60%RH) |
| Test Voitage | 4500V DC |
Mechanical performance
| Minimum Mating Cycles | Over 10000 cycles |
| Wire Range | 35mm²~120mm² |
Environment performance
| IP Degree | IP68(mated) |
| Operation Temperature | -40℃~85℃ |
| Salt Spray Resistance | 480H |
Reference standard
| USCAR-2 |
| USCAR-37 |
| RoHS |
| LV215 |
