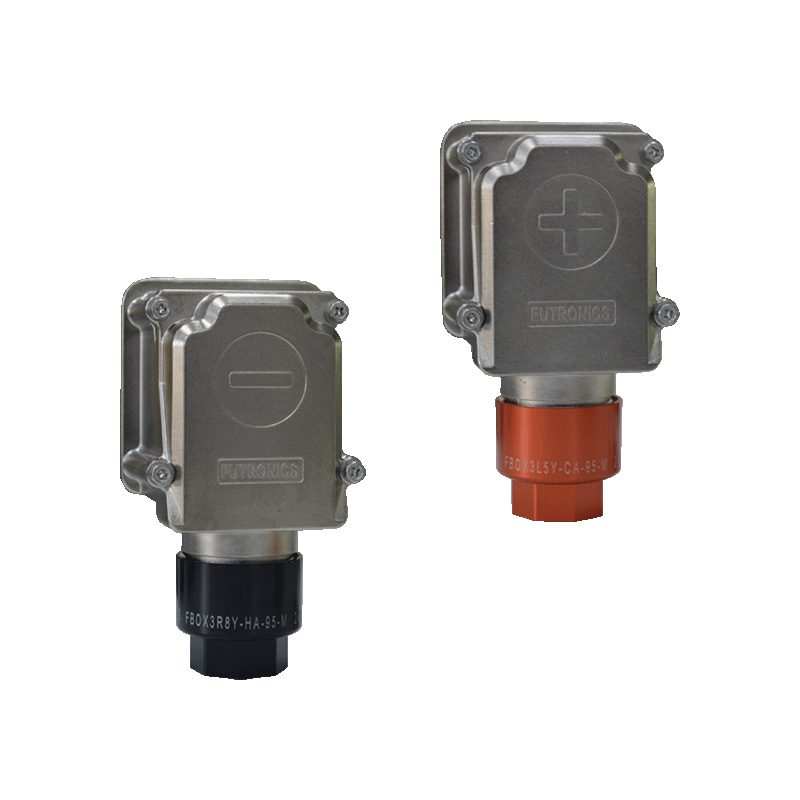

The product is a high-current and high-voltage junction box, used for connecting energy storage batteries or power batteries
Electrical performance
| Rated Current | 480A |
| Rated Voitage | 1000V DC |
| Insulation Resistance | 5000MΩ MIN( Drying) 200MΩ MIN(RH 95%) |
| Test Voitage | 3000V AC 3000V DC |
Mechanical performance
| Minimum Mating Cycles | 500 times |
| Wire Range | 0.5mm²~1.5mm² |
Environment performance
| IP Degree | IP68 |
| Operation Temperature | -40℃~125℃ |
| Salt Spray Resistance | 48H(mating state） |
Reference standard
| USCAR-2 |
