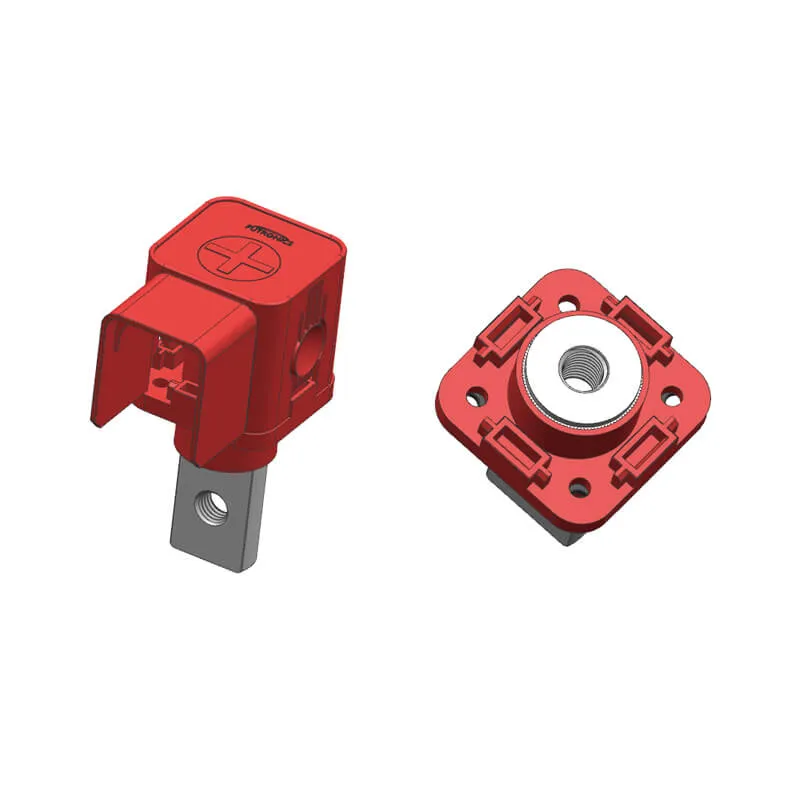

The product is vehicle connector, which is used for the connection between electric vehicle or electric motorcycle parts.
Electrical performance
| Rated Current | 500A |
| Rated Voitage | 1500V DC |
| Insulation Resistance | 5000MΩ MIN (@25℃ 40%-60%RH) |
| Test Voitage | 4000V AC |
Mechanical performance
| 1Minimum Mating Cycles | 100 |
| Wire Range | Power: 150mm² |
Environment performance
| IP Degree | IP68 |
| Operation Temperature | -40℃~125℃ |
| Salt Spray Resistance | 48H |
Reference standard
| USCAR-2 |
