Application

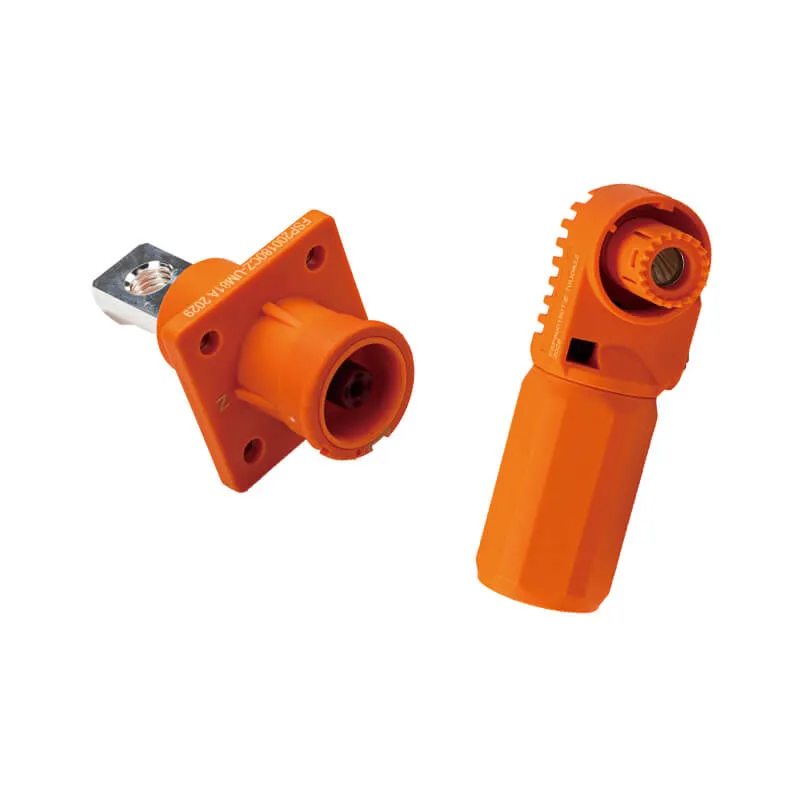

The product is vehicle mounted high-voltage metal connector, which is used for high-voltage connection between components such as vehicle charger, battery pack, high-voltage distribution box, motor controller, motor, air conditioner, PTC, battery, etc.
Electrical performance
| Rated Current | 125A/150A/200A/250A |
| Rated Voitage | 1500V DC |
| Insulation Resistance | 5000MΩ MIN( Drying) 200MΩ MIN(RH 95%) |
| Test Voitage | TUV 4260V AC |
Mechanical performance
| Minimum Mating Cycles | 500 |
| Wire Range | 25mm²~70mm² |
Environment performance
| IP Degree | IP67B |
| Operation Temperature | -40℃~125℃ |
| Salt Spray Resistance | 144H |
Reference standard
| UL4128 |
| TUV 2pfG 2740-04.20 |
| USCAR-2 |
| USCAR37 |
