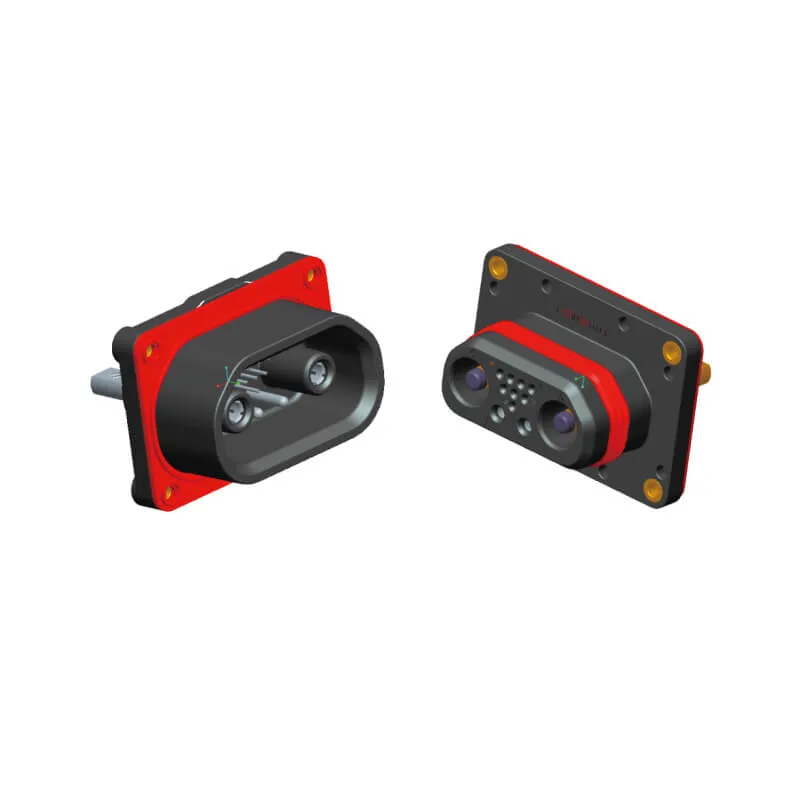

The product is 3.6 Hybrid connector, which is used for family laminated energy storage box, laminated energy storage box, or low in electric car, etc.
Electrical performance
| Rated Current | 120A |
| Rated Voitage | DC1000V |
| Insulation Resistance | 5000MΩ MIN( Drying) 200MΩ MIN(RH 95%) |
| Test Voitage | 3000V AC between power terminals 1000VAC between other terminals |
Mechanical performance
| Minimum Mating Cycles | 1000 times |
| Wire Range | 16mm²~25mm² |
Environment performance
| IP Degree | IP67/TYPE 6 |
| Operation Temperature | -40℃~125℃ |
| Salt Spray Resistance | 144H(mating state) |
Reference standard
| QCT1067 |
| UL1977 |
| UL2238 |
| CSA C22.2 No. 182.3 |
