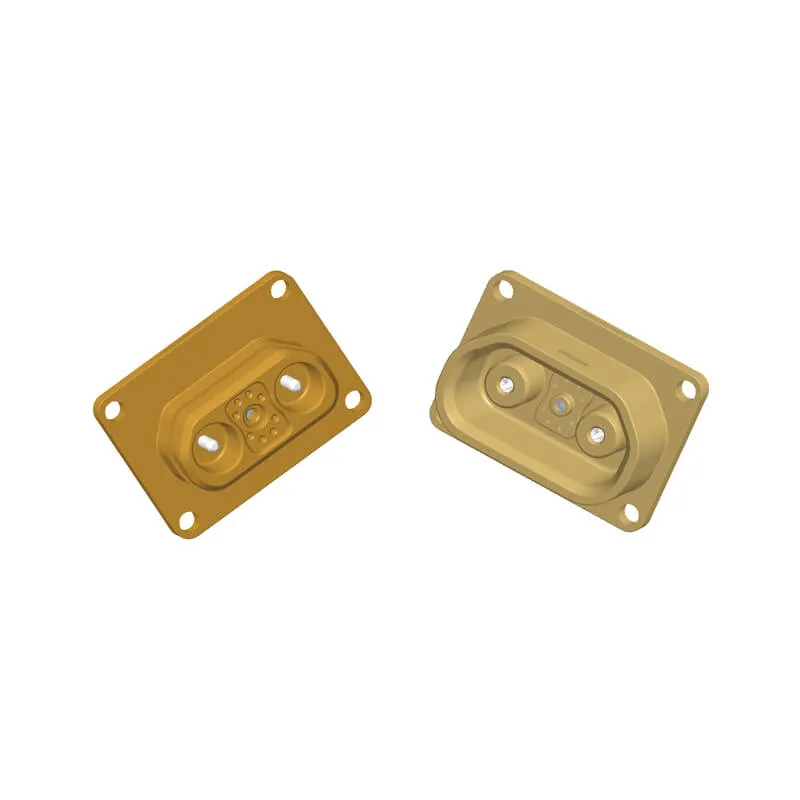

The product is 3.6 Hybrid connector, which is used for family laminated energy storage box, laminated energy storage box, or low in electric car, etc.
Electrical performance
| Rated Current | 45A/70A/80A |
| Rated Voitage | 1000V DC |
| Insulation Resistance | 500MΩ MIN(AT25°C) |
| Test Voitage | 3000V AC (working voltage 1000V DC) 1000V AC (working voltage 100V DC) |
Mechanical performance
| Minimum Mating Cycles | 50 times |
| Wire Range | Power: 2.5mm²~16mm² Signal: 0.35mm²~0.75mm² |
Environment performance
| IP Degree | IP67 |
| Operation Temperature | -40℃~+125℃ |
| Salt Spray Resistance | 48H(mating state) |
Reference standard
| USCAR-2 |
