Application

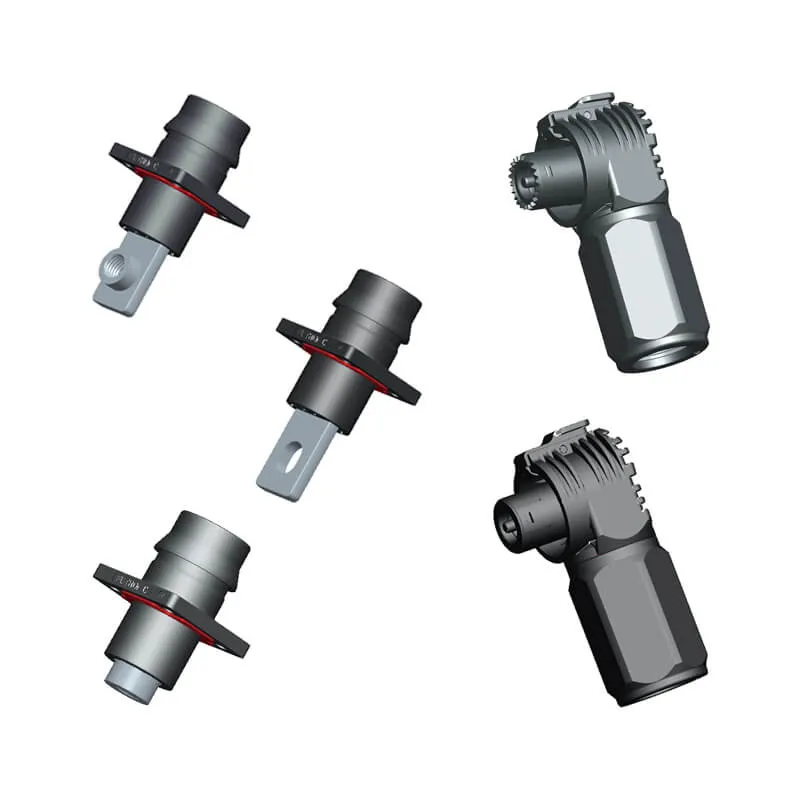

The product is energy storage plastic connector, which is used for high-voltage connection between components such as energy storage cabinet, energy storage station, mobile energy storage vehicle, photovoltaic power station, etc.
Electrical performance
| Rated Current | 250A~350A |
| Rated Voitage | 1500V DC |
| Insulation Resistance | 5000MΩ MIN( Drying) 200MΩ MIN(RH 95%) |
| Test Voitage | 6800V AC |
Mechanical performance
| Minimum Mating Cycles | 500 times |
| Wire Range | TUV: 70~120mm² UL: 2/0~4/0AWG |
Environment performance
| IP Degree | IP67B |
| Operation Temperature | -40℃~125℃ |
| Salt Spray Resistance | 144H |
Reference standard
| UL4128 |
| PPP 51090A |
| USCAR-2 |
| USCAR37 |
