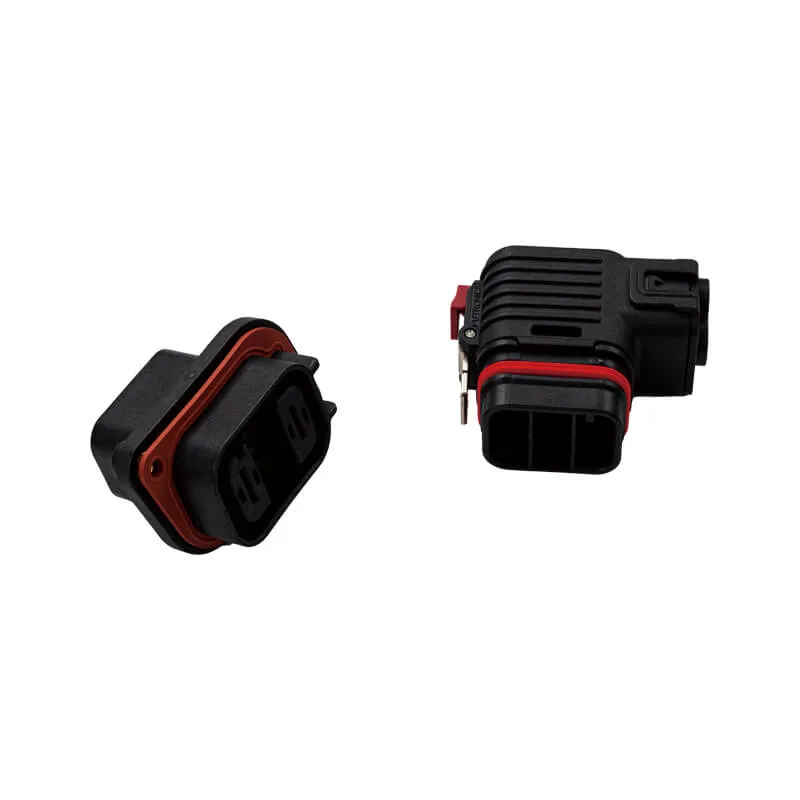

The product is vehicle mounted low-voltage plastic connector, which is used to connect components such as vehicle charger, battery pack and battery.
Electrical performance
| Rated Current | 80A/100A |
| Rated Voitage | 1000V DC 600V AC |
| Insulation Resistance | 5000MΩ MIN( Drying) 200MΩ MIN(RH 95%) |
| Test Voitage | 4800V DC 2200V AC |
Mechanical performance
| Minimum Mating Cycles | 500 |
| Wire Range | 10mm²~16mm² |
Environment performance
| IP Degree | IP67 mated |
| Operation Temperature | -40℃~125℃ |
| Salt Spray Resistance | 144H (mating state） |
Reference standard
| USCAR-2 |
| USCAR37 |
