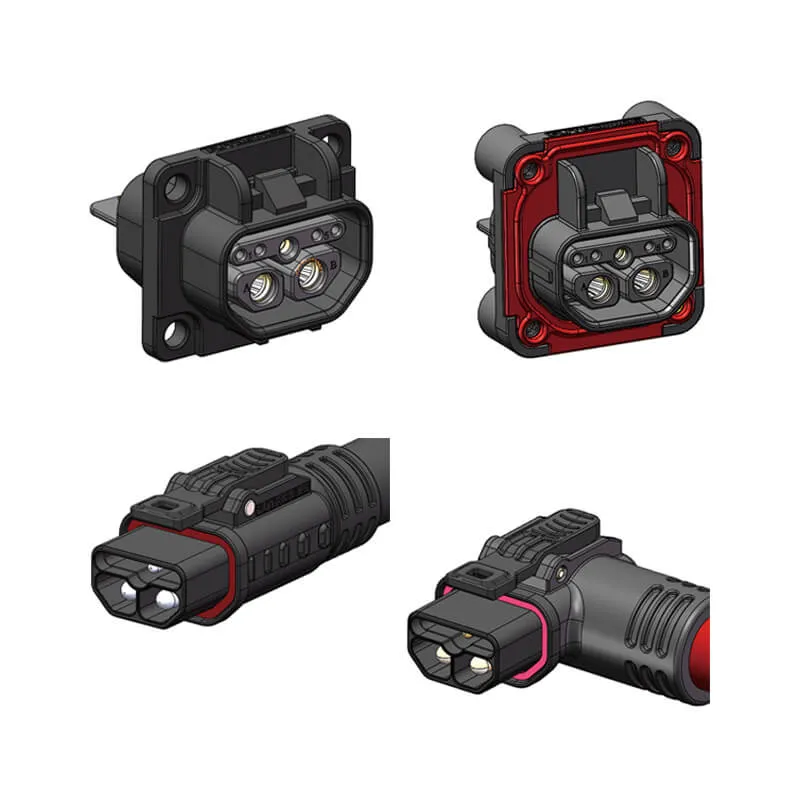

The product is vehicle connector, which is used for the connection between electric vehicle or electric motorcycle parts.
Electrical performance
| Rated Current | Power: 2C60A Signal: 4C5A/1C15A |
| Rated Voitage | 1000V DC |
| Insulation Resistance | 5000MΩ MIN( Drying) 200MΩ MIN(RH 95%) |
| Test Voitage | 3000V AC 4800V DC |
Mechanical performance
| Minimum Mating Cycles | 500 times |
| Wire Range | Power： 8mm²Signal：4C20AWG/1C14AWG |
Environment performance
| IP Degree | IP67 mated |
| Operation Temperature | -40℃~125℃ |
| Salt Spray Resistance | 144H (mating state） |
Reference standard
| USCAR-2 |
