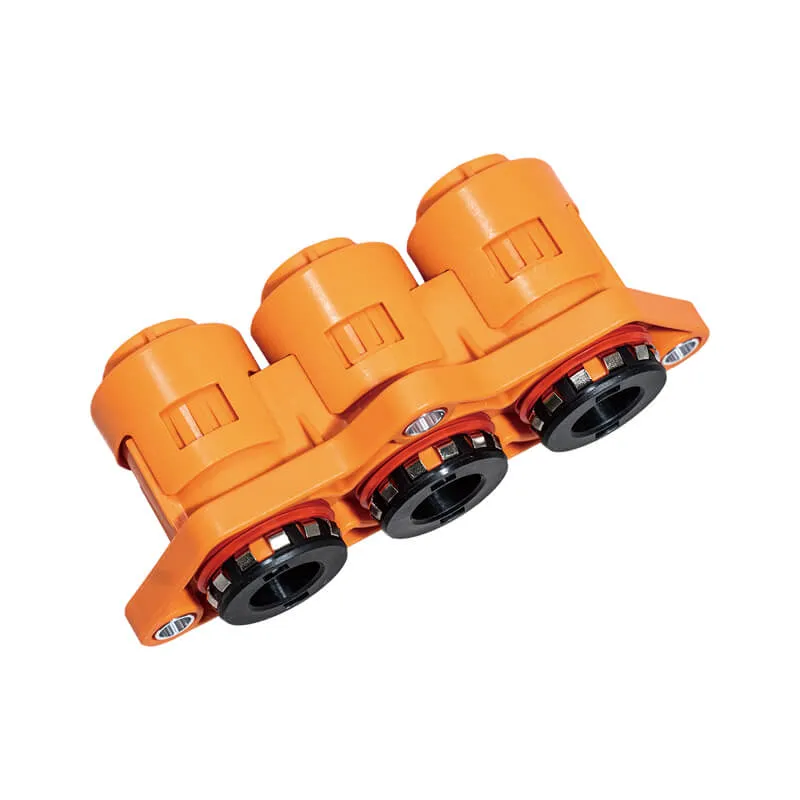

Thru-hole Connector Series
share
Detail
Application
The product is vehicle connector, which is used for the connection between electric vehicle or electric motorcycle parts.
Electrical performance
| Rated Current | 80A/120A/150A/200A |
| Rated Voitage | 850V DC |
| Insulation Resistance | 5000MΩ MIN( Drying) 200MΩ MIN(RH 95%) |
| Test Voitage | 3000V AC 4200V DC |
Mechanical performance
| Minimum Mating Cycles | / |
| Wire Range | Power: 16mm²/25mm²/35mm² |
Environment performance
| IP Degree | IP67 |
| Operation Temperature | -40℃~+125℃ |
| Salt Spray Resistance | 144H (mating state） |
Reference standard
| USCAR-2 |
