Application

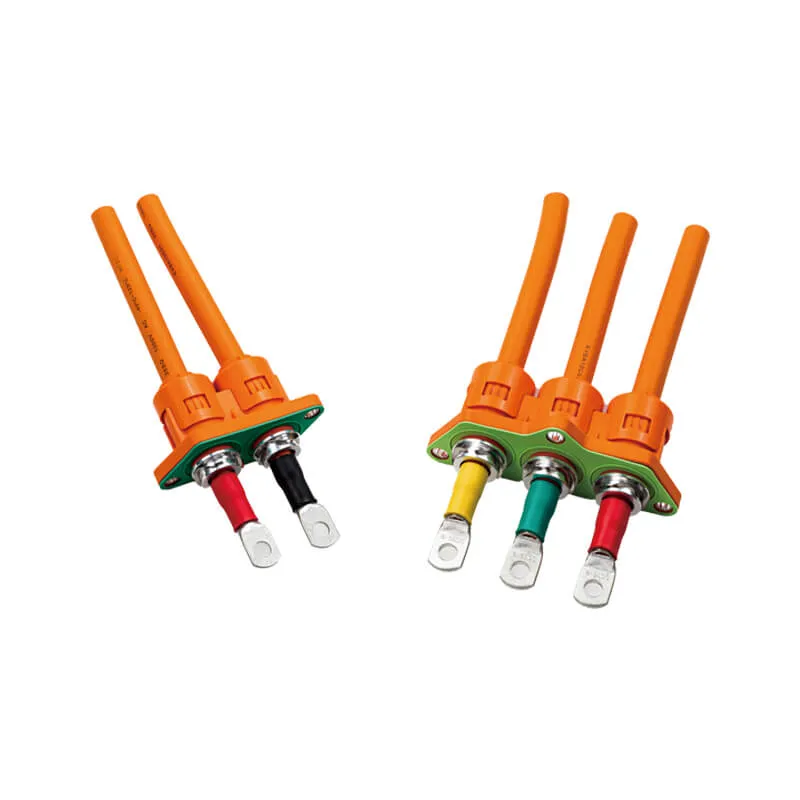

The product is vehicle mounted high-voltage plasticconnector, which is used for high-voltage connection between components such as vehicle charger, battery pack, high-voltage distribution box, motor controller, motor, air conditioner, PTC, battery, etc
Electrical performance
| Rated Current | 100A/125A/150A/200A |
| Rated Voitage | 850V |
| Insulation Resistance | 5000MΩ MIN( Drying) 200MΩ MIN(RH 95%) |
| Test Voitagea | 3000VDC |
Mechanical performance
| Minimum Mating Cycles | 100 times |
| Wire Range | 15mm²~50mm² |
Environment performance
| IP Degree | IP68 |
| Operation Temperature | -40℃~125℃ |
| Salt Spray Resistance | 144H (mating state） |
Reference standard
| USCAR-2 |
| USCAR37 |
